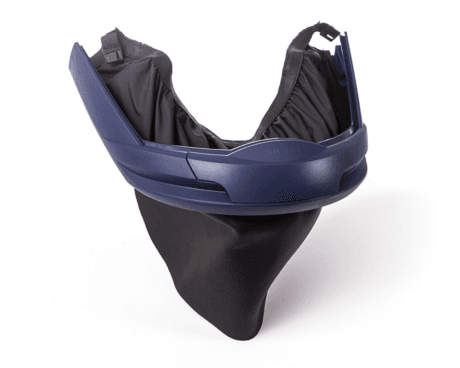

SR 580 Protective helmet with visor
The SR 580 together with the battery-powered SR 500, SR 500 EX or SR 700 fan and approved filters are
included in the Sundström fan-assisted respiratory protection device systems. The breathing hose of the helmet
with visor is to be connected to the fan, equipped with filters. The pressure generated in the visor prevents
particles and other pollutants from entering the breathing zone.
The SR 580 can also be used with the SR 507 compressed air equipment. This combination forms a breathing
apparatus designed for continuous air flow, for connection to a compressed air supply. See separate product
leaflet SR 507.
The equipment can be used as an alternative to filter respirators in all situations for which filter respirators are
recommended. This applies particularly to work that is hard, warm or of long duration.
- Number
- H06-8012
- Color
- Blue
- Shelf life (years)
- 5
- Country of manufacture
- Sweden
- Operating temp.
- -10 – +55 °C, < 90 % RH
- Storage temp.
- -20 – +40 °C, < 90 % RH
- Model
- SR 580
- Assign. protection factor
- 40 (3A,3B), 40 (TH3)
- Nom. protection factor
- 200 (3A,3B), 500 (TH3)
- Approval
- EN 12941:1998 + A2:2008, EN 14594:2005, EN 397, EN 166 (B, 120m/s)
- Directive 1
- (EU) 2016/425 PPE
- Directive 2
- ATEX 2014/34/EU
- Classification 2
- II G Ex ib IIA T3 Gb, II 2 D Ex ib IIIC T195° Db
